Jabsco Pure Flow Flexible Impeller Pumps

Replacement Parts

Please use the charts below to select the appropriate spare part(s) that you require. When you are finished, review your cart items here or click on the cart button below to submit your replacement part RFQ. One of our engineers will be in touch with you shortly.

Item(s)     Find More Replacement Parts

Click on the pump you need parts for below to display the selection charts.

OLD STYLE Flexible Impeller Pumps

S10, 15010-9775

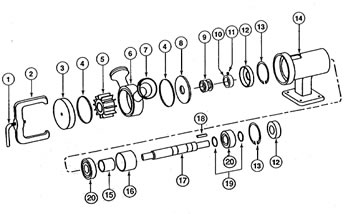

Wilevco Pump Part Replacement Key
Key Description Jabsco Part # Wilevco Part # Qty. Add to Quote
1 Clamp Screw 10408-0010 660-005 ✔
2 Clamp 12695-0000 660-095 ✔
3 End Cover 10435-0001 660-110 ✔
4 O-Ring 92000-0290 020-005 ✔
5 Impeller 8980-0005 660-125 ✔
6 Pump Body 15014-0071 660-170 ✔
7 Wearplate 10396-0010 660-185 ✔
8 Shaft Seal 7749-0000 660-200 ✔
9 Seal Collar 5307-0000 660-215 ✔
10 Bearing Seal 92701-0110 660-020 ✔
11 Retaining Ring (Housing) 91700-2920 020-235 ✔
12 Bearing Housing 12234-0000 660-035 ✔
13 Bearing 192601-0350 020-050 ✔
14 Bearing Spacer (Shaft) 10693-0010 660-050 ✔
15 Bearing Spacer (Housing) 10449-0010 660-055 ✔
16 Shaft 10447-0001 660-080 ✔
17 Key 3/16” Key Stock   ✔
18 Retaining Ring (shaft) 91700-2470 020-230 ✔
19 Bearing 92601-0330 020-050 ✔
20 Bearing Seal 92701-0110 660-020 ✔

S30, 15030-9775

Wilevco Pump Part Replacement Key
Key Description Jabsco Part # Wilevco Part # Qty. Add to Quote
1 Clamp Screw 9551-0010 660-010 ✔
2 Clamp 12698-0000 660-100 ✔
3 End Cover 10515-0001 660-115 ✔
4 O-Ring 92000-0310 020-010 ✔
5 Impeller 09-836S-7** 660-145 ✔
6 Pump Body 15034-0071 660-175 ✔
7 Wearplate 10046-0010 660-190 ✔
8 Shaft Seal 8728-0000 660-205 ✔
9 Seal Collar 8727-0000 660-220 ✔
10 Bearing Seal 92701-0170 660-025 ✔
11 Retaining Ring (Housing) 91701-0260 020-240 ✔
12 Bearing Housing 12658-0000 660-040 ✔
13 Bearing 92601-0340 020-055 ✔
14 Bearing Spacer (Shaft) 10428-0010 660-060 ✔
15 Bearing Spacer (Housing) 10525-0010 660-065 ✔
16 Shaft 10517-0001 660-085 ✔
17 Key 3/16” Key Stock   ✔
18 Retaining Ring (shaft) 91700-0980 020-260 ✔
19 Bearing 92601-0300 020-055 ✔
20 Bearing Seal 92701-0170 660-025 ✔
** Johnson Pump Part Number, Jabsco Impeller not used

S50, 15050-9775

Wilevco Pump Part Replacement Key
Key Description Jabsco Part # Wilevco Part # Qty. Add to Quote
1 Clamp Screw 10697-0010 660-015 ✔
2 Clamp 12996-0000 660-105 ✔
3 End Cover 10299-0001 660-120 ✔
4 O-Ring 92000-0040 020-015 ✔
5 Impeller 8983-0005 660-155 ✔
6 Pump Body 15054-0071 660-180 ✔
7 Wearplate 10276-0010 660-195 ✔
8 Shaft Seal 9023-0000 660-210 ✔
9 Seal Collar 7866-0000 660-225 ✔
10 Bearing Seal 92702-0780 660-030 ✔
11 Retaining Ring (Housing) 91701-2830 020-245 ✔
12 Bearing Housing 12944-0000 660-045 ✔
13 Bearing 18753-0007 020-080 ✔
14 Bearing Spacer (Shaft) 10539-0010 660-070 ✔
15 Bearing Spacer (Housing) 10291-0010 660-075 ✔
16 Shaft 10277-0001 660-090 ✔
17 Key 1/4” Key Stock   ✔
18 Retaining Ring (shaft) 91700-1180 020-250 ✔
19 Bearing 18753-0007 020-080 ✔
20 Bearing Seal 92702-0780 660-030 ✔

S70, 15070-9765

Wilevco Pump Part Replacement Key
Key Description Jabsco Part # Wilevco Part # Qty. Add to Quote
1 Clamp Screw 18024-0000 660-016 ✔
2 Clamp 12927-0000 660-106 ✔
3 End Cover 10345-0001 660-121 ✔
4 O-Ring 92000-0030 020-017 ✔
5 Impeller 8600-0005 660-168 ✔
6 Pump Body 15074-0071 660-182 ✔
7 Wearplate 10346-0010 660-196 ✔
8 Shaft Seal 14052-0000 660-211 ✔
9 Seal Collar 8248-0000 660-226 ✔
10 Bearing Seal 92700-0870 660-031 ✔
11 Retaining Ring (Housing) 91701-4370 020-247 ✔
12 Bearing Housing 14028-0000 660-046 ✔
13 Bearing 92601-0240 020-081 ✔
14 Bearing Spacer (Shaft) 10378-0010 660-076 ✔
15 Bearing Spacer (Housing) 10351-0001 660-077 ✔
16 Shaft 10347-0001 660-091 ✔
17 Key 5/16” Key Stock   ✔
18 Retaining Ring (shaft) 91700-1370 020-257 ✔
19 Bearing 92601-0230 020-081 ✔
20 Bearing Seal 92700-0870 660-031 ✔

S90, 15590-9775

Wilevco Pump Part Replacement Key
Key Description Jabsco Part # Wilevco Part # Qty. Add to Quote
1 Clamp Screw 21908-0000 660-017 ✔
2 Clamp 21909-0000 660-107 ✔
3 End Cover 22007-0000 660-122 ✔
4 O-Ring SP2000-1213 020-018 ✔
5 Impeller 21899-0005 660-169 ✔
6 Pump Body 22004-5001 660-183 ✔
7 Wearplate 15592-6000 660-197 ✔
8/9 Mechanical (Shaft) Seal w/ Washer 22644-6000 660-243 ✔
10 V-Ring X5280-015 020-147 ✔
11 Front Bearing Seal Housing 23933-0000 660-034 ✔
Front Bearing Lip Seal X5280-011 660-033 ✔
O-Ring X4020-379A 020-021 ✔
12 Bearing Housing   660-047 ✔
Retaining Ring - Housing (2) 5000-334 020-275 ✔
Ball Bearing - Front 6209 2RS 020-082 ✔
Retaining Ring - Shaft 5100-177 020-270 ✔
Roller Bearing - Rear N209 ECP 020-083 ✔
Bearing Lip Seal Rear 92701-0880 660-032 ✔
Shaft 15591-6000 660-092 ✔
NEW STYLE Flexible Impeller Pumps

S10, 15510-9775

Wilevco Pump Part Replacement Key
Key Description Jabsco Part # Wilevco Part # Qty. Add to Quote
1 Clamp Screw 10408-0010 660-005 ✔
2 Clamp 12695-0000 660-095 ✔
3 End Cover 15511-0000 660-130 ✔
4 O-Ring 92000-1403 020-005 ✔
5 Impeller 8980-0005 660-125 ✔
6 Pump Body 15513-0070 660-250 ✔
7 Wearplate 15512-0000 660-260 ✔
8 Seal, Mechanical (18753-0245) 96080-0557 660-240 ✔
9 Seal Collar 15516-0000 660-270 ✔
10 Bearing Seal 92701-0110 660-020 ✔
11 Retaining Ring (Housing) 91700-3024 020-235 ✔
12 Bearing Housing 15514-0000 660-035NS ✔
13 Bearing 92601-6476 020-050 ✔
14 Bearing Spacer (Shaft) 10693-0010 660-050 ✔
15 Bearing Spacer (Housing) 10449-0010 660-055 ✔
16 Shaft 15515-0000 660-255 ✔
17 Key 3/16” Key Stock   ✔
18 Retaining Ring (shaft) 91700-2470 020-230 ✔
19 Bearing 92601-6476 020-050 ✔
20 Bearing Seal 92701-0110 660-020 ✔

S30, 15530-9775

Wilevco Pump Part Replacement Key
Key Description Jabsco Part # Wilevco Part # Qty. Add to Quote
1 Clamp Screw 9551-0010 660-010 ✔
2 Clamp 12698-0000 660-100 ✔
3 End Cover 15531-0000 660-131 ✔
4 O-Ring 92000-1918 020-010 ✔
5 Impeller 09-836S-7** 660-145 ✔
6 Pump Body 15533-0000 660-251 ✔
7 Wearplate 1532-0000 660-261 ✔
8 Seal, Mechanical (18753-0245) 96080-0557 660-240 ✔
9 Seal Collar 15536-0000 660-271 ✔
10 Bearing Seal 92701-0170 660-025 ✔
11 Retaining Ring (Housing) 91700-3024 020-240 ✔
12 Bearing Housing 15534-0000 660-040NS ✔
13 Bearing 92601-6477 020-055 ✔
14 Bearing Spacer (Shaft) 10428-0010 660-060 ✔
15 Bearing Spacer (Housing) 10525-0010 660-065 ✔
16 Shaft 15535-0000 660-256 ✔
17 Key 3/16” Key Stock   ✔
18 Retaining Ring (shaft) 91700-0980 020-260 ✔
19 Bearing 92601-6477 020-055 ✔
20 Bearing Seal 92701-0170 660-025 ✔

** Johnson Pump Part Number, Jabsco Impeller not used

S50, 15550-9775

Wilevco Pump Part Replacement Key
Key Description Jabsco Part # Wilevco Part # Qty. Add to Quote
1 Clamp Screw 10697-0010 660-015 ✔
2 Clamp 12996-0000 660-105 ✔
3 End Cover 15551-0000 660-132 ✔
4 O-Ring 92000-1420 020-015 ✔
5 Impeller 8983-0005 660-155 ✔
6 Pump Body 15553-0000 660-252 ✔
7 Wearplate 15552-0000 660-262 ✔
8 Seal, Mechanical (18753-0249) 996080-0559 660-241 ✔
9 Seal Collar 15556-0000 660-272 ✔
10 Bearing Seal 92702-0780 660-030 ✔
11 Retaining Ring (Housing) 91700-3023 020-245 ✔
12 Bearing Housing 15554-0000 660-045NS ✔
13 Bearing 18753-0007 020-080 ✔
14 Bearing Spacer (Shaft) 10539-0010 660-070 ✔
15 Bearing Spacer (Housing) 10291-0010 660-075 ✔
16 Shaft 15555-0000 660-257 ✔
17 Key 1/4” Key Stock   ✔
18 Retaining Ring (shaft) 91700-1180 020-250 ✔
19 Bearing 18753-0007 020-080 ✔
20 Bearing Seal 92702-0780 660-030 ✔

S70, 15570-9775

Wilevco Pump Part Replacement Key
Key Description Jabsco Part # Wilevco Part # Qty. Add to Quote
1 Clamp Screw 18024-0000 660-016 ✔
2 Clamp 12927-0000 660-106 ✔
3 End Cover 15571-0000 660-133 ✔
4 O-Ring 92000-1420 020-017 ✔
5 Impeller 8600-0005 660-168 ✔
6 Pump Body 15573-0000 660-253 ✔
7 Wearplate 15572-0000 660-263 ✔
8 Seal, Mechanical (18753-0253) 96080-6561 660-242 ✔
9 Seal Collar 15537-0000 660-273 ✔
10 Bearing Seal 92700-0870 660-031 ✔
11 Retaining Ring (Housing) 91701-3022 020-247 ✔
12 Bearing Housing 15574-0000 660-046NS ✔
13 Bearing 92601-6479 020-081 ✔
14 Bearing Spacer (Shaft) 10378-0010 660-076 ✔
15 Bearing Spacer (Housing) 10321-0010 660-077 ✔
16 Shaft 15575-0000 660-258 ✔
17 Key 5/16” Key Stock   ✔
18 Retaining Ring (shaft) 91700-1370 020-257 ✔
19 Bearing 92601-6479 020-081 ✔
20 Bearing Seal 92700-0870 660-031 ✔
