OPERATOR CONTROLS
Replacement Parts
Please use the charts below to select the appropriate spare part(s) that you require. When you are finished, review your cart items here or click on the cart button below to submit your replacement part RFQ. One of our engineers will be in touch with you shortly.
Request Replacement Parts

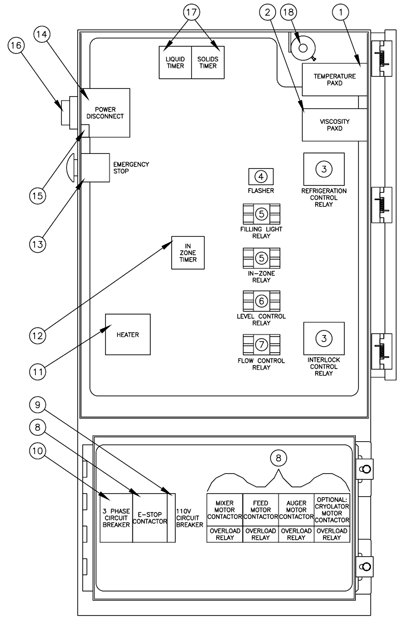

| Key | Description | Part # | Qty. | Add to Quote |
|---|---|---|---|---|
| 1 | Temperature Controller w/Dual Relay | 400-401 | ✔ | |
| 2 | Viscosity Controller w/Quad Relay | 400-402 | ✔ | |
| 3 | Relay | 280-085 | ✔ | |
| 3 | Relay Cover | 280-086 | ✔ | |
| 4 | Flasher | 220-160 | ✔ | |
| 5 | Wilevco Relay | 220-005 | ✔ | |
| 6 | Level Probe Relay | 440-040 | ✔ | |
| 7 | Flow Probe Relay | 280-034 | ✔ | |
| 8 | Telemecanique LC1-D25-F7 Contactor | 260-106 | ✔ | |
| Note: All contactors are the same. Contactor overloads vary, check your Specification Sheet for details. Additional contactor is used for electric Cryolator drive. | ||||
| 9 | 120-Volt Circuit Breaker | 260-145 | ✔ | |
| 10 | 15 AMP 3 Phase Circuit Breaker | 260-155 | ✔ | |
| 10 | 30 AMP 3 Phase Circuit Breaker | 260-160 | ✔ | |
| 11 | Heater | 220-210 | ✔ | |
| 12 | In-Zone Timer | 440-060 | ✔ | |
| 13 | Emergency Stop Block | 280-195 | ✔ | |
| 14 | Power Disconnect Switch | 280-059 | ✔ | |
| 15 | Power Disconnect Auxiliary Contact | 280-058 | ✔ | |
| 16 | Power Disconnect Handle | 280-055 | ✔ | |
| 17 | Liquids/Solids Dual Control Timer | 400-364 | ✔ | |
| 18 | Viscosity Potentiometer | 400-400 | ✔ | |
