4.5 X 6 CRYOLATOR
Replacement Parts
Please use the charts below to select the appropriate spare part(s) that you require. When you are finished, review your cart items here or click on the cart button below to submit your replacement part RFQ. One of our engineers will be in touch with you shortly.

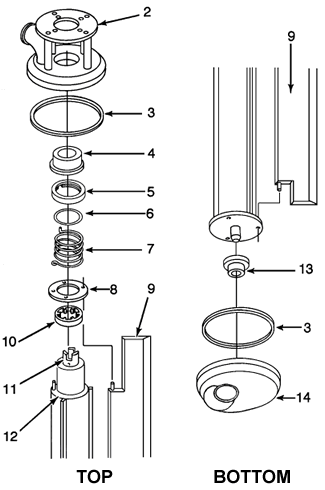

(Click on image to enlarge)
| Key | Description | Part # | Qty. | Add to Quote |
|---|---|---|---|---|
| 2 | Top Cap - 1 1/2" Discharge | 080-106 | ✔ | |
| 2 | Top Cap - 2" Discharge | 080-156 | ✔ | |
| 3 | Cap Gasket (2) | 080-180 | ✔ | |
| 4 | C-13A Top Bearing | 080-005 | ✔ | |
| 5 | C-17A Seal Collar | 100-045 | ✔ | |
| 6 | Seal Collar O-Ring | 020-020 | ✔ | |
| 7 | Seal Collar Spring | 100-035 | ✔ | |
| 8 | Top Washer | 100-025 | ✔ | |
| 9 | Blade (3) - C-36W | 100-060 | ✔ | |
| 9 | Blade (3) - C-116 (3/8" thick) | 100-061 | ✔ | |
| 10 | Coupling Insert | 120-015 | ✔ | |
| 11 | Coupling (half shown) | 120-035 | ✔ | |
| 12 | Rotor | 100-020 | ✔ | |
| 13 | C-14B Bottom Bearing | 080-020 | ✔ | |
| 14 | Bottom Cap - 1 1/2" Inlet | 080-116 | ✔ | |
| 14 | Bottom Cap - 2" Inlet | 080-154 | ✔ | |
| NOT SHOWN |
Hydraulic - Char-lynn | 540-010 | ✔ | |
| NOT SHOWN |
Electric - 2 HP Motor | 500-003 | ✔ | |
| NOT SHOWN |
Electric - F721-10 Reducer | 720-010 | ✔ | |
| NOT SHOWN |
Cap Clamp | 360-150 | ✔ |
